Lexus ES: Telescopic Position Sensor or Telescopic Motor Circuit Component Internal Failure (B261196)

Lexus ES (XZ10) Service Manual / Steering / Steering Column / Power Tilt And Power Telescopic Steering Column System(for Gasoline Model) / Telescopic Position Sensor or Telescopic Motor Circuit Component Internal Failure (B261196)

DESCRIPTION

The telescopic motor (steering column assembly) is operated by the power source voltage supplied from the multiplex tilt and telescopic ECU and slides the steering column assembly forward and backward. The telescopic position sensor (Hall IC) in the telescopic motor (steering column assembly) detects the sliding position of the steering column assembly in the forward and backward directions and sends a signal to the multiplex tilt and telescopic ECU based on that sliding amount.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B261196

Telescopic Position Sensor or Telescopic Motor Circuit Component Internal Failure

Telescopic operation stops within the operation range while operating.
  • TI&TE Fuse
  • Telescopic position sensor (steering column assembly)
  • Telescopic motor (steering column assembly)
  • Harness or connector
  • Multiplex tilt and telescopic ECU

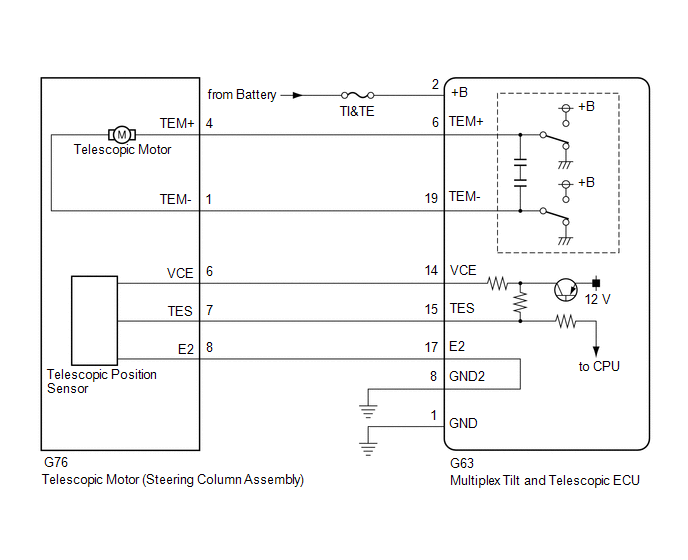

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

Inspect the fuses for circuits related to this system before performing the following procedure.

PROCEDURE

1.

PERFORM ACTIVE TEST USING TECHSTREAM (TELESCOPIC MOTOR)

(a) Turn the engine switch off.

(b) Connect the Techstream to the DLC3.

(c) Turn the engine switch on (IG).

(d) Turn the Techstream on.

(e) Check that the steering column contracts and extends.

(f) Enter the following menus: Body Electrical / Tilt & Telescopic / Active Test.

Body Electrical > Tilt&Telescopic > Active Test

Tester Display

Telescopic Motor
Body Electrical > Tilt&Telescopic > Active Test

Tester Display

Measurement Item

Control Range

Telescopic Motor

Telescopic Operation

LONG/SHORT

OK:

The steering column contracts and extends.

NG

GO TO STEP 6

OK

2.

CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - TELESCOPIC POSITION SENSOR (STEERING COLUMN ASSEMBLY))

(a) Disconnect the G63 multiplex tilt and telescopic ECU connector.

(b) Disconnect the G76 telescopic motor (steering column assembly) connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G63-14 (VCE) - G76-6 (VCE)

Always

Below 1 Ω

G63-15 (TES) - G76-7 (TES)

Always

Below 1 Ω

G63-17 (E2) - G76-8 (E2)

Always

Below 1 Ω

G63-14 (VCE) or G76-6 (VCE) - Body ground

Always

10 kΩ or higher

G63-15 (TES) or G76-7 (TES) - Body ground

Always

10 kΩ or higher

G63-17 (E2) or G76-8 (E2) - Body ground

Always

10 kΩ or higher
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

3.

CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BODY GROUND)

(a) Disconnect the G63 multiplex tilt and telescopic ECU connector.

*a

Front view of wire harness connector

(to Multiplex Tilt and Telescopic ECU)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G63-1 (GND) - Body ground

Always

Below 1 Ω

G63-8 (GND2) - Body ground

Always

Below 1 Ω
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

4.

CHECK MULTIPLEX TILT AND TELESCOPIC ECU (VCE, TES TERMINAL VOLTAGE)

(a) Reconnect the G63 multiplex tilt and telescopic ECU connector.

*a

Component with harness connected

(Multiplex Tilt and Telescopic ECU)

(b) Disconnect the G76 telescopic motor (steering column assembly) connector.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

G63-14 (VCE) - G63-17 (E2)

Engine switch on (IG)

8 to 14 V

G63-15 (TES) - G63-17 (E2)

Engine switch on (IG)

8 to 14 V
NG

REPLACE MULTIPLEX TILT AND TELESCOPIC ECU

OK

5.

CHECK TELESCOPIC POSITION SENSOR (STEERING COLUMN ASSEMBLY)

(a) Reconnect the G63 multiplex tilt and telescopic ECU connector.

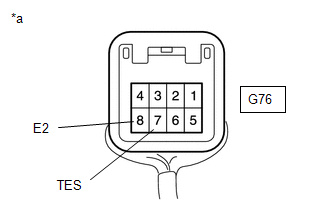

*a

Component with harness connected

(Telescopic Motor (Steering Column Assembly))

(b) Reconnect the G76 telescopic motor (steering column assembly) connector.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

G76-7 (TES) - G76-8 (E2)

Steering column contracting or extending

Pulse generation

High: 8 to 14 V

Low: Below 1 V
OK

REPLACE MULTIPLEX TILT AND TELESCOPIC ECU

NG

REPLACE STEERING COLUMN ASSEMBLY

6.

CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BATTERY)

(a) Disconnect the G63 multiplex tilt and telescopic ECU connector.

*a

Front view of wire harness connector

(to Multiplex Tilt and Telescopic ECU)

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

G63-2 (+B) - Body ground

Engine switch off

11 to 14 V
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

7.

CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BODY GROUND)

(a) Disconnect the G63 multiplex tilt and telescopic ECU connector.

*a

Front view of wire harness connector

(to Multiplex Tilt and Telescopic ECU)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G63-1 (GND) - Body ground

Always

Below 1 Ω

G63-8 (GND2) - Body ground

Always

Below 1 Ω
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

8.

CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - TELESCOPIC MOTOR (STEERING COLUMN ASSEMBLY))

(a) Disconnect the G63 multiplex tilt and telescopic ECU connector.

(b) Disconnect the G76 telescopic motor (steering column assembly) connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G63-6 (TEM+) - G76-4 (TEM+)

Always

Below 1 Ω

G63-19 (TEM-) - G76-1 (TEM-)

Always

Below 1 Ω

G63-6 (TEM+) or G76-4 (TEM+) - Body ground

Always

10 kΩ or higher

G63-19 (TEM-) or G76-1 (TEM-) - Body ground

Always

10 kΩ or higher
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

9.

CHECK TELESCOPIC MOTOR (STEERING COLUMN ASSEMBLY)

(a) Disconnect the G76 telescopic motor (steering column assembly) connector.

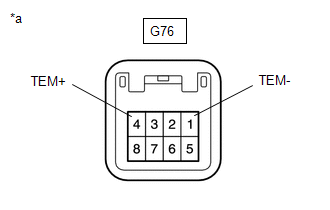

*a

Component without harness connected

(Telescopic Motor (Steering Column Assembly))

(b) Apply 12 V battery voltage to the telescopic motor (steering column assembly) connector. Then check the steering column telescopic operation.

OK:

Measurement Condition

Specified Condition
  • 12 V battery positive (+) lead → G76-4 (TEM+)
  • 12 V battery negative (-) lead → G76-1 (TEM-)

The steering column contracts.
  • 12 V battery positive (+) lead → G76-1 (TEM-)
  • 12 V battery negative (-) lead → G76-4 (TEM+)

The steering column extends.
OK

REPLACE MULTIPLEX TILT AND TELESCOPIC ECU

NG

REPLACE STEERING COLUMN ASSEMBLY
