DESCRIPTION

The transmission revolution sensor (NC) detects the rotation speed of the counter gear which shows the output shaft speed of automatic transaxle assembly.

Based on the transmission revolution sensor (NC) signal and the transmission revolution sensor (NT) signal, the ECM controls engine torque and shift timing.

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	MIL	Memory	Note
P079112	Intermediate Shaft Speed Sensor "A" Circuit Short to Battery	All of the following conditions are met (1-trip detection logic): The battery voltage is 8 V or more. The engine switch is on (IG). The starter is off. Transmission revolution sensor (NC) input voltage is more than 1.9 V for 2 seconds.	Transmission revolution sensor (NC) Transmission wire Harness and connector ECM	Comes on	DTC stored	SAE Code P07C6
P079114	Intermediate Shaft Speed Sensor "A" Circuit Short to Ground or Open	All of the following conditions are met (1-trip detection logic): The battery voltage is 8 V or more. The engine switch is on (IG). The starter is off. Transmission revolution sensor (NC) input voltage is less than 0.1 V for 2 seconds.	Transmission revolution sensor (NC) Transmission wire Harness and connector ECM	Comes on	DTC stored	SAE Code P07C5
P079131	Intermediate Shaft Speed Sensor "A" No Signal	All of the following conditions are met (1-trip detection logic): The battery voltage is 8 V or more. Park/neutral position switch D input signal is ON. The vehicle speed is 25 km/h (16 mph) or more. Speed indicated by transmission revolution sensor (NT) is higher than specified value. Speed indicated by transmission revolution sensor (NC) is less than 300 rpm for 2 seconds.	Transmission revolution sensor (NC) Transmission wire Harness and connector ECM	Comes on	DTC stored	SAE Code P0793

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

Note

P079112

Intermediate Shaft Speed Sensor "A" Circuit Short to Battery

All of the following conditions are met (1-trip detection logic):

The battery voltage is 8 V or more.
The engine switch is on (IG).
The starter is off.
Transmission revolution sensor (NC) input voltage is more than 1.9 V for 2 seconds.

Transmission revolution sensor (NC)
Transmission wire
Harness and connector
ECM

Comes on

DTC stored

SAE Code

P07C6

P079114

Intermediate Shaft Speed Sensor "A" Circuit Short to Ground or Open

All of the following conditions are met (1-trip detection logic):

The battery voltage is 8 V or more.
The engine switch is on (IG).
The starter is off.
Transmission revolution sensor (NC) input voltage is less than 0.1 V for 2 seconds.

Transmission revolution sensor (NC)
Transmission wire
Harness and connector
ECM

Comes on

DTC stored

SAE Code

P07C5

P079131

Intermediate Shaft Speed Sensor "A" No Signal

All of the following conditions are met (1-trip detection logic):

The battery voltage is 8 V or more.
Park/neutral position switch D input signal is ON.
The vehicle speed is 25 km/h (16 mph) or more.
Speed indicated by transmission revolution sensor (NT) is higher than specified value.
Speed indicated by transmission revolution sensor (NC) is less than 300 rpm for 2 seconds.

Transmission revolution sensor (NC)
Transmission wire
Harness and connector
ECM

Comes on

DTC stored

SAE Code

P0793

DTC Detection Condition Patterns (P079131):

		Vehicle Condition
		Pattern 1	Pattern 2	Pattern 3	Pattern 4
Diagnostic Condition	The battery voltage is 8 V or more.	○	○	○	○
	Park/neutral position switch D input signal is ON.	○	○	○	○
	The vehicle speed is 25 km/h (16 mph) or more.	○	○	○	○
	When the vehicle is being driven in 1st gear, the transmission revolution sensor (NT) value is 2390 rpm or more.	○	-	-	-
	When the vehicle is being driven in 2nd gear, the transmission revolution sensor (NT) value is 1380 rpm or more.	-	○	-	-
	When the vehicle is being driven in 3rd gear, the transmission revolution sensor (NT) value is 890 rpm or more.	-	-	○	-
	When the vehicle is being driven in 4th gear, the transmission revolution sensor (NT) value is 620 rpm or more.	-	-	-	○
Malfunction Condition	Speed indicated by transmission revolution sensor (NC) is less than 300 rpm.	○	○	○	○
Duration		2 seconds or more	2 seconds or more	2 seconds or more	2 seconds or more
Detection Logic		1-trip detection logic	1-trip detection logic	1-trip detection logic	1-trip detection logic

DTC Detection Condition Patterns (P079131):

		Vehicle Condition
		Pattern 5	Pattern 6	Pattern 7	Pattern 8
Diagnostic Condition	The battery voltage is 8 V or more.	○	○	○	○
	Park/neutral position switch D input signal is ON.	○	○	○	○
	The vehicle speed is 25 km/h (16 mph) or more.	○	○	○	○
	When the vehicle is being driven in 5th gear, the transmission revolution sensor (NT) value is 540 rpm or more.	○	-	-	-
	When the vehicle is being driven in 6th gear, the transmission revolution sensor (NT) value is 440 rpm or more.	-	○	-	-
	When the vehicle is being driven in 7th gear, the transmission revolution sensor (NT) value is 350 rpm or more.	-	-	○	-
	When the vehicle is being driven in 8th gear, the transmission revolution sensor (NT) value is 300 rpm or more.	-	-	-	○
Malfunction Condition	Speed indicated by transmission revolution sensor (NC) is less than 300 rpm.	○	○	○	○
Duration		2 seconds or more	2 seconds or more	2 seconds or more	2 seconds or more
Detection Logic		1-trip detection logic	1-trip detection logic	1-trip detection logic	1-trip detection logic

HINT:

DTC P079131 is stored when any of the above detection patterns is met.

MONITOR DESCRIPTION

The transmission revolution sensor (NC) monitors the output shaft speed.

The ECM commands gear changes and controls the lock up timing based on the signals from the transmission revolution sensor (NC) and throttle position sensor.

If the vehicle is being driven at 25 km/h (16 mph) or more and the speed sensor (NC) signal sent to the ECM is less than 300 rpm, or if the transmission revolution sensor (NC) input signal voltage is less than 0.1 V or more than 1.9 V, the ECM will illuminate the MIL and store a DTC.

MONITOR STRATEGY

Related DTCs	P0793: Speed sensor (NC)/Verify pulse input P07C5: Speed sensor (NC)/Range check (Low voltage) P07C6: Speed sensor (NC)/Range check (High voltage)
Required sensors/components	Speed sensor (NT), Speed sensor (NC)
Frequency of operation	Continuous
Duration	2 sec.
MIL operation	Immediate
Sequence of operation	None

TYPICAL ENABLING CONDITIONS

All

Battery voltage	8 V or more
Engine switch	On (IG)
Starter	OFF

P0793

The monitor will run whenever the following DTCs are not stored	P07C5, P07C6 (Intermediate shaft speed sensor circuit) U0100 (CAN communication system) P2716 (Pressure control solenoid circuit)
Intermediate shaft speed sensor range check fail (P07C5, P07C6) (Pending / MIL)	Not detected
Vehicle speed	25 km/h (15.54 mph) or more
Shift change is completed and before starting next shift change operation	-
Park/neutral position switch	OFF
R range position switch	OFF
D range position switch	ON
Engine	Running
Pressure control solenoid circuit fail (P08C1, P08C2, P0962, P0963, P0966, P0967, P0970, P0971, P2720, P2721, P2814, P2815, P281D, P281E) (Pending + MIL)	Not detected
Torque converter clutch pressure control solenoid circuit fail (P2763, P2764) (Pending + MIL)	Not detected
Torque converter clutch solenoid circuit fail (P2769, P2770) (Pending + MIL)	Not detected

One of the following conditions is met: Condition (A), (B), (C), (D), (E), (F), (G) or (H) Condition (A)

ECM selected gear

1st

Turbine speed sensor revolution

2390 rpm or more

Condition (B)

ECM selected gear

2nd

Turbine speed sensor revolution

1380 rpm or more

Condition (C)

ECM selected gear

3rd

Turbine speed sensor revolution

890 rpm or more

Condition (D)

ECM selected gear

4th

Turbine speed sensor revolution

620 rpm or more

Condition (E)

ECM selected gear

5th

Turbine speed sensor revolution

540 rpm or more

Condition (F)

ECM selected gear

6th

Turbine speed sensor revolution

440 rpm or more

Condition (G)

ECM selected gear

7th

Turbine speed sensor revolution

350 rpm or more

Condition (H)

ECM selected gear

8th

Turbine speed sensor revolution

300 rpm or more

Either of the following conditions is met: Condition (I) or (J) Condition (I)

ECT

20°C (68°F) or more

ECT sensor circuit fail (P0117, P0118)

(Pending + MIL)

Not detected

Time after park/neutral position switch ON to OFF

2 seconds or more

Condition (J)

Either of the following conditions is met	(a) or (b)
(a) ECT	Less than 20°C (68°F)
(b) ECT sensor circuit fail (P0117, P0118) (Pending + MIL)	Detected
Time after park/neutral position switch ON to OFF	30 seconds or more

P07C5, P07C6

The monitor will run whenever the following DTCs are not stored

P0793 (Intermediate shaft speed sensor verify pulse input)

Intermediate shaft speed sensor pulse input fail (P0793)

(Pending / MIL)

Not detected

TYPICAL MALFUNCTION THRESHOLDS

P0793

Intermediate shaft speed sensor revolution

Less than 300 rpm

P07C5

Intermediate shaft speed sensor voltage

Less than 0.1 V

P07C6

Intermediate shaft speed sensor voltage

More than 1.9 V

COMPONENT OPERATING RANGE

Intermediate shaft speed sensor revolution	300 rpm or more
Intermediate shaft speed sensor voltage	0.1 V or more and 1.9 V or less

CONFIRMATION DRIVING PATTERN

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT:

After repairs have been completed, clear the DTCs and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
When clearing the permanent DTCs, refer to the Clear Permanent DTC procedure.
Click here

Connect the Techstream to the DLC3.
Turn the engine switch on (IG) and turn the Techstream on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the engine switch off and wait for 2 minutes or more.
Turn the engine switch on (IG) and turn the Techstream on.
Start the engine.
Perform the D Position Shift Test inspection in Road Test. [*1]
Click here

HINT:

[*1] : Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
Stop the vehicle.
Enter the following menus: Powertrain / Transmission / Utility / All Readiness.
Input the DTC: P079112, P079114 or P079131.

Check the DTC judgment result.

Techstream Display	Description
NORMAL	DTC judgment completed System normal
ABNORMAL	DTC judgment completed System abnormal
INCOMPLETE	DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions
N/A	Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit

HINT:

If the judgment result shows NORMAL, the system is normal.
If the judgment result shows ABNORMAL, the system has a malfunction.
If the judgment result shows INCOMPLETE or N/A, perform the normal judgment procedure again.

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

Perform the universal trip to clear permanent DTCs.
Click here
Perform registration and/or initialization when parts related to the automatic transaxle are replaced.
Click here

DATA LIST

NOTICE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

HINT:

Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

(a) Warm up the engine.

(b) Turn the engine switch off.

(d) Turn the engine switch on (IG).

(e) Turn the Techstream on.

(f) Enter the following menus: Powertrain / Transmission / Data List / NC Sensor Speed.

(g) Read the Data List according to the display on the Techstream.

Powertrain > Transmission > Data List

Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
NC Sensor Speed	Counter gear speed	Min.: 0 rpm Max.: 12750 rpm	-	-

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

NC Sensor Speed

Counter gear speed

Min.: 0 rpm

Max.: 12750 rpm

Powertrain > Transmission > Data List

Tester Display
NC Sensor Speed

HINT:

NC Sensor Speed is always 0 while driving: Open or short in the sensor or circuit.
NC Sensor Speed is always more than 0 and less than 300 rpm while driving the vehicle at 16 km/h (10 mph) or more: Sensor malfunction, improper installation, or intermittent connection malfunction in the circuit.

PROCEDURE

1.	READ VALUE USING TECHSTREAM (NC SENSOR SPEED AND NC SENSOR VOLTAGE)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(d) Enter the following menus: Powertrain / Transmission / Data List / NC Sensor Speed and NC Sensor Voltage.

(e) Read the Data List according to the display on the Techstream.

Powertrain > Transmission > Data List

Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
NC Sensor Speed	Counter gear speed	Min.: 0 rpm Max.: 12750 rpm	-	-
NC Sensor Voltage	NC sensor voltage	Min.: 0.000 V Max.: 4.999 V	0.1 to 1.9 V: Engine idling	-

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

NC Sensor Speed

Counter gear speed

Min.: 0 rpm

Max.: 12750 rpm

NC Sensor Voltage

NC sensor voltage

Min.: 0.000 V

Max.: 4.999 V

0.1 to 1.9 V: Engine idling

Powertrain > Transmission > Data List

Tester Display
NC Sensor Speed
NC Sensor Voltage

Result	Proceed to
Data List values are normal	A
Data List values are not normal	B

GO TO STEP 5

2.	INSPECT TRANSMISSION REVOLUTION SENSOR (NC) (NC TERMINAL)

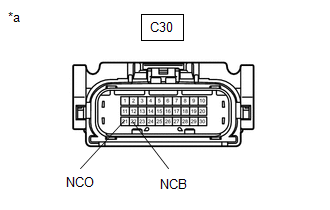

(a) Disconnect the C30 transmission wire connector.

*a	Front view of wire harness connector (to Transmission Wire)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
C30-21 (NCO) - Body ground	Always	99 to 101 Ω

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
C30-22 (NCB) - Body ground	Engine switch on (IG)	11 to 14 V

GO TO STEP 4

3.	INSPECT TRANSMISSION WIRE (TRANSMISSION REVOLUTION SENSOR (NC))

(a) Disconnect the transmission revolution sensor (NC) connector.

Click here

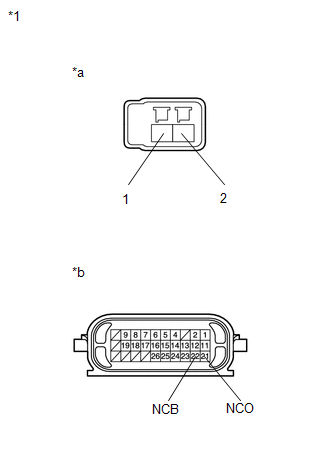

*1	Transmission Wire
*a	Transmission Revolution Sensor (NC) Side
*b	Wire Harness Connector Side

(b) Disconnect the C30 transmission wire connector.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 (transmission revolution sensor (NC) side) - 22 (NCB) (wire harness connector side)	Always	Below 1 Ω
2 (transmission revolution sensor (NC) side) - 21 (NCO) (wire harness connector side)	Always	Below 1 Ω
1 (transmission revolution sensor (NC) side) or 22 (NCB) (wire harness connector side) - Body ground	Always	10 kΩ or higher
2 (transmission revolution sensor (NC) side) or 21 (NCO) (wire harness connector side) - Body ground	Always	10 kΩ or higher

REPLACE TRANSMISSION REVOLUTION SENSOR (NC)

REPAIR OR REPLACE TRANSMISSION WIRE

4.	CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM)

(a) Disconnect the C30 transmission wire connector.

(b) Disconnect the C78 ECM connector.

Standard Resistance:

Tester Connection	Condition	Specified Condition
C30-22 (NCB) - C78-33 (NCB)	Always	Below 1 Ω
C30-21 (NCO) - C78-34 (NCO)	Always	Below 1 Ω
C30-22 (NCB) or C78-33 (NCB) - Body ground	Always	10 kΩ or higher
C30-21 (NCO) or C78-34 (NCO) - Body ground	Always	10 kΩ or higher

REPAIR OR REPLACE HARNESS OR CONNECTOR (TRANSMISSION WIRE - ECM)

5.	REPLACE ECM

(a) Replace the ECM.

Click here

PERFORM REGISTRATION

SEE MORE:

Deceleration Sensor (C1232,C1243,C1245)

DESCRIPTION The airbag ECU assembly has a built-in yaw rate and acceleration sensor and detects the vehicle condition using 2 circuits (GL1, GL2). The skid control ECU (brake booster with master cylinder assembly) receives signals from the yaw rate and acceleration sensor (airbag ECU assembly) via t

Motor Electronics Coolant Temperature Sensor Circuit Voltage Out of Range (P0A001C)

DTC SUMMARY MALFUNCTION DESCRIPTION These DTCs indicate that the temperature sensor value is abnormal. The cause of this malfunction may be one of the following: Area Main Malfunction Description Inverter low-voltage circuit The connectors are not connected properly Hybrid cooling sys

Lexus ES: Intermediate Shaft Speed Sensor "A" Circuit Short to Battery (P079112,P079114,P079131)

READ NEXT:

Pressure Control Solenoid "C" Circuit Short to Battery (P079512)

Pressure Control Solenoid "C" Circuit Short to Ground or Open (P079514)

Pressure Control Solenoid "D" Circuit Short to Battery (P271312)

SEE MORE:

Deceleration Sensor (C1232,C1243,C1245)

Motor Electronics Coolant Temperature Sensor Circuit Voltage Out of Range (P0A001C)

ECM selected gear	1st
Turbine speed sensor revolution	2390 rpm or more

ECM selected gear	2nd
Turbine speed sensor revolution	1380 rpm or more

ECM selected gear	3rd
Turbine speed sensor revolution	890 rpm or more

ECM selected gear	4th
Turbine speed sensor revolution	620 rpm or more

ECM selected gear	5th
Turbine speed sensor revolution	540 rpm or more

ECM selected gear	6th
Turbine speed sensor revolution	440 rpm or more

ECM selected gear	7th
Turbine speed sensor revolution	350 rpm or more
