Lexus ES: Input/Turbine Speed Sensor "A" Circuit Short to Battery (P071512,P071514,P071531)

Lexus ES (XZ10) Service Manual / Drivetrain / Ub80f (automatic Transmission / Transaxle) / Automatic Transaxle System / Input/Turbine Speed Sensor "A" Circuit Short to Battery (P071512,P071514,P071531)

DESCRIPTION

The transmission revolution sensor (NT) detects the input shaft rotation speed and sends it to the ECM.

Based on the transmission revolution sensor (NT) signal and the transmission revolution sensor (NC) signals, the ECM controls engine torque and shift timing. Based on the input shaft rotation speed and the engine speed signal, lock-up control is performed.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

Note

P071512

Input/Turbine Speed Sensor "A" Circuit Short to Battery

All of the following conditions are met (1-trip detection logic):

  • The battery voltage is 8 V or more.
  • The engine switch is on (IG).
  • The starter is off.
  • Transmission revolution sensor (NT) input voltage is more than 1.9 V for 4.5 seconds.
  • Transmission revolution sensor (NT)
  • Transmission wire
  • Harness and connector
  • ECM

Comes on

DTC stored

SAE Code:

P07C0

P071514

Input/Turbine Speed Sensor "A" Circuit Short to Ground or Open

All of the following conditions are met (1-trip detection logic):

  • The battery voltage is 8 V or more.
  • The engine switch is on (IG).
  • The starter is off.
  • Transmission revolution sensor (NT) input voltage is less than 0.1 V for 4.5 seconds or more.
  • Transmission revolution sensor (NT)
  • Transmission wire
  • Harness and connector
  • ECM

Comes on

DTC stored

SAE Code:

P07BF

P071531

Input/Turbine Speed Sensor "A" No Signal

All of the following conditions are met (1-trip detection logic):

  • The battery voltage is 8 V or more.
  • The park/neutral position switch D input signal is ON.
  • The speed indicated by transmission revolution sensor (NC) is 610 rpm or more.
  • The vehicle speed is 23 km/h (14 mph) or more.
  • The vehicle is being driven in 1st, 2nd, 3rd, 4th, 5th, 6th, 7th or 8th gear.
  • The speed indicated by transmission revolution sensor (NT) is less than 300 rpm for 5 seconds or more.
  • Transmission revolution sensor (NT)
  • Transmission wire
  • Harness and connector
  • ECM

Comes on

DTC stored

SAE Code:

P0717

MONITOR DESCRIPTION

The NT terminal of the ECM detects a pulse signal from the transmission revolution sensor (NT) (input RPM). The ECM calculates gear shifts by comparing input signals of the transmission revolution sensor (NT) with the transmission revolution sensor (NC).

While the vehicle is being driven in 1st, 2nd, 3rd, 4th, 5th, 6th, 7th or 8th gear with the shift lever in D, if the input shaft revolution (speed) is less than 300 rpm* when the vehicle speed is 23 km/h (14 mph) or more, the ECM interprets this as a malfunction, illuminates the MIL and stores a DTC.

*: Pulse is not output or is irregularly output.

MONITOR STRATEGY

Related DTCs

P0717: Speed sensor (NT)/Verify pulse input

P07BF: Speed sensor (NT)/Range check (Low voltage)

P07C0: Speed sensor (NT)/Range check (High voltage)

Required sensors/components

Speed sensor (NT), Speed sensor (NC)

Frequency of operation

Continuous

Duration

P0717: 5 sec.

P07BF, P07C0: 4.5 sec.

MIL operation

Immediate

Sequence of operation

None

TYPICAL ENABLING CONDITIONS

All

Battery voltage

8 V or more

Engine switch

On (IG)

Starter

OFF

P0717

The monitor will run whenever the following DTCs are not stored

None

Turbine speed sensor range check fail (P07BF, P07C0)

(Pending / MIL)

Not detected

Vehicle speed sensor

23 km/h (14.3 mph) or more

Intermediate shaft speed sensor revolution

610 rpm or more

Shift change is completed and before starting next shift change operation

-

Park/neutral position switch

OFF

R range position switch

OFF

D range position switch

ON

Engine

Running

Pressure control solenoid circuit fail (P08C1, P08C2, P0962, P0963, P0966, P0967, P0970, P0971, P2720, P2721, P2814, P2815, P281D, P281E)

(Pending + MIL)

Not detected

Torque converter clutch pressure control solenoid circuit fail (P2763, P2764)

(Pending + MIL)

Not detected

Torque converter clutch solenoid circuit fail (P2769, P2770)

(Pending + MIL)

Not detected

Vehicle speed sensor monitor condition is met

-

P07BF, P07C0

The monitor will run whenever the following DTCs are not stored

None

Turbine speed sensor pulse input fail (P0717)

(Pending / MIL)

Not detected

Vehicle speed sensor monitor condition judgment:

Intermediate shaft speed sensor revolution

300 rpm or more

Shift change is completed and before starting next shift change operation

-

R range position switch

OFF

D range position switch

ON

Park/neutral position switch

OFF

Engine

Running

Pressure control solenoid circuit fail (P08C1, P08C2, P0962, P0963, P0966, P0967, P0970, P0971, P2720, P2721, P2814, P2815, P281D, P281E)

(Pending + MIL)

Not detected

Torque converter clutch pressure control solenoid circuit fail (P2763, P2764)

(Pending + MIL)

Not detected

Torque converter clutch solenoid circuit fail (P2769, P2770)

(Pending + MIL)

Not detected

One of the following conditions is met: Condition (A), (B), (C), (D), (E), (F), (G) or (H)
  • Condition (A)

    ECM selected gear

    1st

    Turbine speed sensor revolution

    1450 rpm or more

    Condition (B)

    ECM selected gear

    2nd

    Turbine speed sensor revolution

    840 rpm or more

    Condition (C)

    ECM selected gear

    3rd

    Turbine speed sensor revolution

    540 rpm or more

    Condition (D)

    ECM selected gear

    4th

    Turbine speed sensor revolution

    400 rpm or more

    Condition (E)

    ECM selected gear

    5th

    Turbine speed sensor revolution

    330 rpm or more

    Condition (F)

    ECM selected gear

    6th

    Turbine speed sensor revolution

    300 rpm or more

    Condition (G)

    ECM selected gear

    7th

    Turbine speed sensor revolution

    300 rpm or more

    Condition (H)

    ECM selected gear

    8th

    Turbine speed sensor revolution

    300 rpm or more

Either of the following conditions is met: Condition (I) or (J)
  • Condition (I)

    ECT

    20°C (68°F) or more

    ECT sensor circuit fail (P0117, P0118)

    (Pending + MIL)

    Not detected

    Time after park/neutral position switch ON to OFF

    2 sec. or more

    Condition (J)

    Either of the following conditions is met

    (a) or (b)

    (a) ECT

    Less than 20°C (68°F)

    (b) ECT sensor circuit fail (P0117, P0118)

    (Pending + MIL)

    Detected

    Time after park/neutral position switch ON to OFF

    30 sec. or more

TYPICAL MALFUNCTION THRESHOLDS

P0717

Turbine speed sensor revolution

Less than 300 rpm

P07BF

Turbine speed sensor voltage

Less than 0.1 V

P07C0

Turbine speed sensor voltage

More than 1.9 V

COMPONENT OPERATING RANGE

Turbine speed sensor revolution

300 rpm or more

Turbine speed sensor voltage

0.1 V or more and 1.9 V or less

CONFIRMATION DRIVING PATTERN

CAUTION:

When performing the D Position Shift Test inspection in Road Test, obey all speed limits and traffic laws.

HINT:

  • After repairs have been completed, clear the DTCs and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
  • When clearing the permanent DTCs, refer to the Clear Permanent DTC procedure.

    Click here

  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  4. Turn the engine switch off and wait for 2 minutes or more.
  5. Turn the engine switch on (IG) and turn the Techstream on.
  6. Start the engine.
  7. Perform the D Position Shift Test inspection in Road Test. [*1]

    Click here

    HINT:

    [*1] : Normal judgment procedure.

    The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

  8. Stop the vehicle.
  9. Enter the following menus: Powertrain / Transmission / Utility / All Readiness.
  10. Input the DTC: P071512, P071514 or P071531.
  11. Check the DTC judgment result.

    Techstream Display

    Description

    NORMAL

    • DTC judgment completed
    • System normal

    ABNORMAL

    • DTC judgment completed
    • System abnormal

    INCOMPLETE

    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    N/A

    • Unable to perform DTC judgment
    • Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit

    HINT:

    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows INCOMPLETE or N/A, perform the normal judgment procedure again.

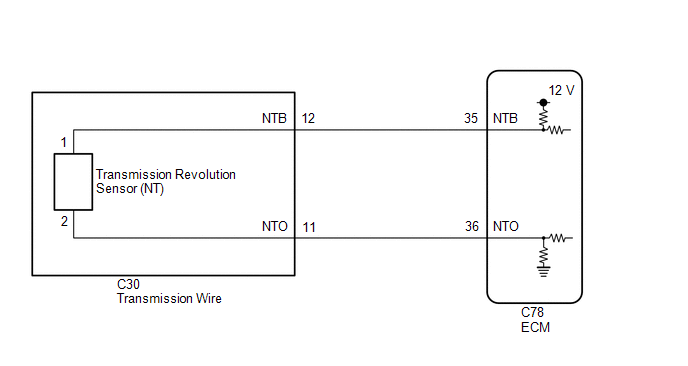

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • Perform the universal trip to clear permanent DTCs.

    Click here

  • Perform registration and/or initialization when parts related to the automatic transaxle are replaced.

    Click here

DATA LIST

NOTICE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

HINT:

Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

(a) Warm up the engine.

(b) Turn the engine switch off.

(c) Connect the Techstream to the DLC3.

(d) Turn the engine switch on (IG).

(e) Turn the Techstream on.

(f) Enter the following menus: Powertrain / Transmission / Data List / NT Sensor Speed.

(g) Read the Data List according to the display on the Techstream.

Powertrain > Transmission > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

NT Sensor Speed

Input shaft speed

Min.: 0 rpm

Max.: 12750 rpm

  • Equal to engine speed: Lock-up on (after warming up engine)
  • Nearly equal to engine speed: Lock-up off (idling with shift lever in N)

Data is displayed in increments of 50 rpm

Powertrain > Transmission > Data List

Tester Display

NT Sensor Speed

HINT:

  • NT Sensor Speed is always 0 while driving: Open or short in the sensor or circuit.
  • NT Sensor Speed is always more than 0 and less than 300 rpm while driving the vehicle at 50 km/h (31 mph) or more: Sensor malfunction, improper installation, or intermittent connection malfunction in the circuit.

PROCEDURE

1.

READ VALUE USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Transmission / Data List / NT Sensor Speed and NT Sensor Voltage.

(e) Read the Data List according to the display on the Techstream.

Powertrain > Transmission > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

NT Sensor Speed

Input shaft speed

Min.: 0 rpm

Max.: 12750 rpm

  • Equal to engine speed: Lock-up on (after warming up engine)
  • Nearly equal to engine speed: Lock-up off (idling with shift lever in N)

Data is displayed in increments of 50 rpm

NT Sensor Voltage

NT sensor voltage

Min.: 0.000 V

Max.: 4.999 V

0.1 to 1.9 V: Engine idling

-

Powertrain > Transmission > Data List

Tester Display

NT Sensor Speed

NT Sensor Voltage

Result

Proceed to

Data List values are normal

A

Data List values are not normal

B

A

GO TO STEP 5

B

2.

INSPECT TRANSMISSION REVOLUTION SENSOR (NT)

(a) Disconnect the C30 transmission wire connector.

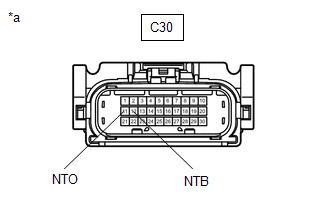

*a

Front view of wire harness connector

(to Transmission Wire)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C30-11 (NTO) - Body ground

Always

99 to 101 Ω

(c) Turn the engine switch on (IG).

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

C30-12 (NTB) - Body ground

Engine switch on (IG)

11 to 14 V

NG

GO TO STEP 4

OK

3.

INSPECT TRANSMISSION WIRE (TRANSMISSION REVOLUTION SENSOR (NT))

(a) Disconnect the transmission revolution sensor (NT) connector.

Click here

*1

Transmission Wire

*a

Transmission Revolution Sensor (NT) Side

*b

Wire Harness Connector Side

(b) Disconnect the C30 transmission wire connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 (transmission revolution sensor (NT) side) - 12 (NTB) (wire harness connector side)

Always

Below 1 Ω

2 (transmission revolution sensor (NT) side) - 11 (NTO) (wire harness connector side)

Always

Below 1 Ω

1 (transmission revolution sensor (NT) side) or 12 (NTB) (wire harness connector side) - Body ground and other terminals

Always

10 kΩ or higher

2 (transmission revolution sensor (NT) side) or 11 (NTO) (wire harness connector side) - Body ground and other terminals

Always

10 kΩ or higher

OK

REPLACE TRANSMISSION REVOLUTION SENSOR (NT)

NG

REPAIR OR REPLACE TRANSMISSION WIRE

4.

CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM)

(a) Disconnect the C30 transmission wire connector.

(b) Disconnect the C78 ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C30-12 (NTB) - C78-35 (NTB)

Always

Below 1 Ω

C30-11 (NTO) - C78-36 (NTO)

Always

Below 1 Ω

C30-12 (NTB) or C78-35 (NTB) - Body ground and other terminals

Always

10 kΩ or higher

C30-11 (NTO) or C78-36 (NTO) - Body ground and other terminals

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (TRANSMISSION WIRE - ECM)

OK

5.

REPLACE ECM

(a) Replace the ECM.

Click here

NEXT

PERFORM REGISTRATION

READ NEXT:

 Torque Converter Clutch Circuit Short to Ground (P074011)

DESCRIPTION Solenoid (SL) valve is turned on and off by signals from the ECM to control the hydraulic pressure acting on the lock-up relay valve, which then controls operation of the lock-up clutch.

 Torque Converter Clutch Circuit Short to Battery or Open (P074015)

DESCRIPTION Refer to DTC P074011. Click here DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note P074015 Torque Converter Clutch Circuit Short to Battery

 Pressure Control Solenoid "A" Circuit Short to Battery (P074512)

DESCRIPTION Changing gears is performed by the ECM turning the solenoid (SL1, SL2, SL3, SL4, SL5 and SL6) valves on and off. If an open or short occurs in any of the solenoid valve circuits, the ECM c

SEE MORE:

 Transmission Control Switch Circuit

DESCRIPTION When the shift lever is in S and moved toward "-" or "+", it is possible to select different shift ranges (S1 to S8). Moving the shift lever toward "+" increases the shift range by one, and moving the shift lever toward "-" decreases the shift range by one. WIRING DIAGRAM CAUTION / NOTI

 System Description

SYSTEM DESCRIPTION FRONT WIPER AND WASHER CONTROL FUNCTION Control/Function Description Wiper speed regulation Maintains the default speed of the wipers even when the supply voltage or resistance changes. Door open linked wiper suspend function*2 Stops the front wipers when the wind

© 2016-2024 Copyright www.lexguide.net
