DESCRIPTION
Refer to DTC P001313.
Click here
DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Memory | Note |
---|---|---|---|---|---|---|
P001400 | Camshaft Position "B" - Timing Over-Advanced or System Performance Bank 1 | Exhaust valve timing is stuck at a certain value when in the advance range (2 trip detection logic). |
| Comes on | DTC stored | SAE Code: P0014 |
P001500 | Camshaft Position "B" - Timing Over-Retarded Bank 1 | Exhaust valve timing is stuck at a certain value when in the retard range (1 trip detection logic). |
| Comes on | DTC stored | SAE Code: P0015 |
P002400 | Camshaft Position "B" - Timing Over-Advanced or System Performance Bank 2 | Exhaust valve timing is stuck at a certain value when in the advance range (2 trip detection logic). |
| Comes on | DTC stored | SAE Code: P0024 |
P002500 | Camshaft Position "B" - Timing Over-Retarded Bank 2 | Exhaust valve timing is stuck at a certain value when in the retard range (1 trip detection logic). |
| Comes on | DTC stored | SAE Code: P0025 |
MONITOR DESCRIPTION
The ECM optimizes the exhaust valve timing using the Variable Valve Timing (VVT) system to control the exhaust camshaft. The VVT system includes the ECM, cam timing oil control solenoid assembly, camshaft timing gear bolt (camshaft timing oil control valve assembly [for exhaust camshaft]) and camshaft timing exhaust gear assembly. The ECM sends a target duty-cycle control signal to the cam timing oil control solenoid assembly. The camshaft timing gear bolt (camshaft timing oil control valve assembly [for exhaust camshaft]) is operated to control the oil pressure supplied to the camshaft timing exhaust gear assembly based on this signal. The camshaft timing exhaust gear assembly can advance or retard the exhaust camshaft.
If the difference between the target and actual exhaust valve timing is large, and changes in the actual exhaust valve timing are small, the ECM interprets this as the camshaft timing exhaust gear assembly stuck malfunction and stores a DTC.
DTC P001400 and P002400 (Advanced Camshaft Timing) is subject to 2 trip detection logic.
DTC P001500 and P002500 (Retarded Camshaft Timing) is subject to 1 trip detection logic.
These DTCs indicate that the camshaft timing exhaust gear assembly cannot operate properly due to a camshaft timing gear bolt (camshaft timing oil control valve assembly [for exhaust camshaft]) malfunction or the presence of foreign matter in the camshaft timing gear bolt (camshaft timing oil control valve assembly [for exhaust camshaft]).
MONITOR STRATEGY
Related DTCs | P0014: Advanced camshaft timing (for exhaust camshaft of bank 1) P0015: Retarded camshaft timing (for exhaust camshaft of bank 1) P0024: Advanced camshaft timing (for exhaust camshaft of bank 2) P0025: Retarded camshaft timing (for exhaust camshaft of bank 2) |
Required Sensors/Components (Main) | Cam timing oil control solenoid assembly (for exhaust camshaft) Camshaft timing gear bolt (camshaft timing oil control valve assembly [for exhaust camshaft]) Camshaft timing exhaust gear assembly |
Required Sensors/Components (Related) | Crankshaft position sensor VVT sensor Engine coolant temperature sensor |
Frequency of Operation | Continuous |
Duration | Within 10 seconds |
MIL Operation | Advanced camshaft timing: 2 driving cycles Retarded camshaft timing: Immediate |
Sequence of Operation | None |
TYPICAL ENABLING CONDITIONS
Monitor runs whenever the following DTCs are not stored | P0013, P0023 (Exhaust VVT oil control solenoid bank1, 2) P0017, P0019 (Exhaust VVT system bank1, 2 - misalignment) P0101, P0102, P0103 (Mass air flow meter) P0117, P0118 (Engine coolant temperature sensor) P0125 (Insufficient coolant temperature for closed loop fuel control) P0335, P0337, P0338 (Crankshaft position sensor) P0340, P0342, P0343, P0345, P0347, P0348 (Camshaft position sensor) P0365, P0367, P0368, P0390, P0392, P0393 (Exhaust camshaft position sensor) |
Battery voltage | 11 V or higher |
Engine speed | 500 to 4000 rpm |
Engine coolant temperature | 75 to 100°C (167 to 212°F) |
TYPICAL MALFUNCTION THRESHOLDS
P0014 and P0024: Advanced Camshaft Timing Both of the following conditions are met | - |
Deviation of actual valve timing and target valve timing | More than 5°CA (Crankshaft Angle) for 5 seconds or more after the VVT hold duty ratio learned value reaches the upper or lower limit. |
Valve timing | No change at advanced valve timing |
Both of the following conditions are met | - |
Deviation of actual valve timing and target valve timing | More than 5°CA (Crankshaft Angle) for 5 seconds or more after the VVT hold duty ratio learned value reaches the upper or lower limit. |
Valve timing | No change at retarded valve timing |
If the difference between the target and actual camshaft timing is greater than the specified value, the ECM operates the VVT actuator for 10 seconds by applying and releasing oil pressure. Then, the ECM monitors the camshaft timing change for 10 seconds.
MONITOR RESULT
Refer to detailed information in Checking Monitor Status.
Click here
P0014, P0015: Exhaust Gas Recirculation/VVT / EX VVT STUCK B1 Monitor ID | Test ID | Scaling | Unit | Description |
---|---|---|---|---|
$35 | $85 | Multiply by 0.01 | Second | Forced movement of cam timing control actuator time |
Monitor ID | Test ID | Scaling | Unit | Description |
---|---|---|---|---|
$36 | $85 | Multiply by 0.01 | Second | Forced movement of cam timing control actuator time |

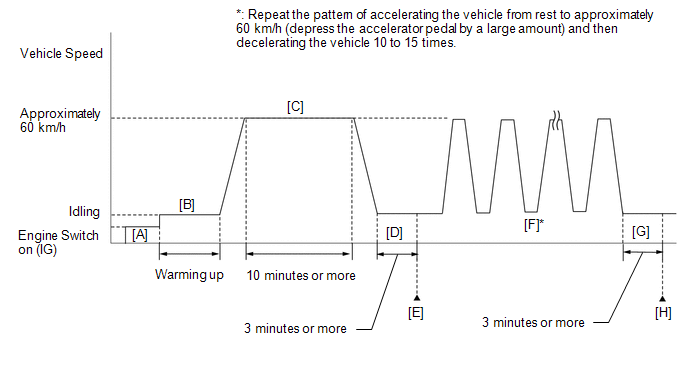

CONFIRMATION DRIVING PATTERN
HINT:
Click here
Click here
CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
HINT:
Techstream Display | Description |
---|---|
NORMAL |
|
ABNORMAL |
|
INCOMPLETE |
|
HINT:
The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
HINT:
Depress the accelerator pedal by a large amount.
HINT:
HINT:
The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
WIRING DIAGRAM
Refer to DTC P001313.
Click here
CAUTION / NOTICE / HINT
Abnormal Bank | Timing Over Advanced (Valve timing is out of specified range) | Timing Over Retarded (Valve timing is out of specified range) |
---|---|---|
Bank 1 | P001400 | P001500 |
Bank 2 | P002400 | P002500 |
*: The No. 1 cylinder is the cylinder which is farthest from the transaxle.
PROCEDURE
1. | CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P001400, P001500, P002400 OR P002500) |
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine / Trouble Codes.
(e) Read the DTCs.
Powertrain > Engine > Trouble Codes Result | Proceed to |
---|---|
DTC P001400, P001500, P002400 or P002500 is output | A |
DTC P001400, P001500, P002400 or P002500 and other DTCs are output | B |
HINT:
If any DTCs other than P001400, P001500, P002400 or P002500 are output, troubleshoot those DTCs first.
B | GO TO DTC CHART |
|
2. | PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE EXHAUST VVT OCV DUTY RATIO) |
(a) Connect the Techstream to the DLC3.
(b) Start the engine.
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine / Active Test / Control the Exhaust VVT OCV Duty Ratio Bank 1 or Control the Exhaust VVT OCV Duty Ratio Bank 2.
Powertrain > Engine > Active Test Tester Display |
---|
Control the Exhaust VVT OCV Duty Ratio Bank 1 |
Tester Display |
---|
Control the Exhaust VVT OCV Duty Ratio Bank 2 |
(e) Check the engine speed while operating the cam timing oil control solenoid assembly (for exhaust camshaft) using the Techstream.
OK:
Techstream Operation | Engine Condition |
---|---|
0% | Normal engine speed |
100% | Engine idles roughly or stalls |
HINT:
Refer to "Data List / Active Test" [Exhaust VVT OCV Control Duty Ratio Bank 1, Exhaust VVT Change Angle Bank 1, Exhaust VVT OCV Control Duty Ratio Bank 2 and Exhaust VVT Change Angle Bank 2].
Click here
NG | GO TO STEP 4 |
|
3. | CHECK WHETHER DTC OUTPUT RECURS (DTC P001400, P001500, P002400 OR P002500) |
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream on.
(d) Clear the DTCs.
Powertrain > Engine > Clear DTCs(e) Turn the engine switch off and wait for at least 30 seconds.
(f) Turn the engine switch on (IG).
(g) Turn the Techstream on.
(h) Start the engine and warm it up.
(i) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
(j) Enter the following menus: Powertrain / Engine / Trouble Codes.
(k) Read the DTCs.
Powertrain > Engine > Trouble Codes Result | Proceed to |
---|---|
DTCs are not output | A |
DTC P001400, P001500, P002400 or P002500 is output | B |
HINT:
DTC P001400, P001500, P002400 or P002500 may be stored when foreign matter in the engine oil is caught in some parts of the system. The DTC will remain stored even if the system returns to normal after a short time. This foreign matter may then be captured by the oil filter.
A | CHECK FOR INTERMITTENT PROBLEMS |
|
4. | INSPECT CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (FOR EXHAUST CAMSHAFT) |
(a) Inspect the cam timing oil control solenoid assembly (for exhaust camshaft).
Click here
NG | GO TO STEP 10 |
|
5. | INSPECT CAMSHAFT TIMING GEAR BOLT (CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY [FOR EXHAUST CAMSHAFT]) |
(a) Inspect the camshaft timing gear bolt (camshaft timing oil control valve assembly [for exhaust camshaft]).
NG | GO TO STEP 12 |
|

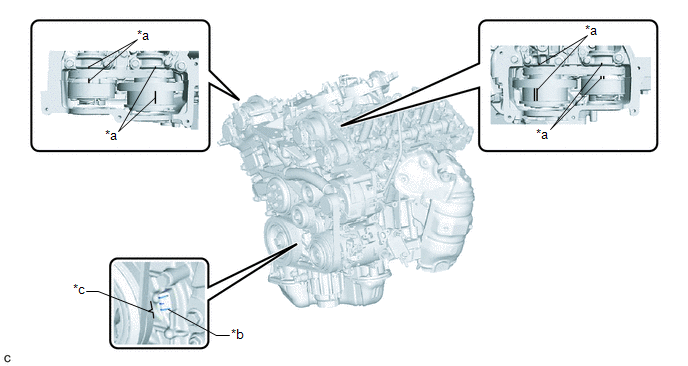

6. | CHECK VALVE TIMING (CHECK FOR LOOSE TIMING CHAIN AND JUMPED TEETH) |
(a) Remove the cylinder head cover sub-assembly and cylinder head cover sub-assembly LH.
*a | Timing Mark | *b | TDC Timing Mark |
*c | Groove | - | - |
(b) Turn the crankshaft pulley and align its groove with the TDC timing mark of the timing chain cover.
(c) Check that the timing marks of the camshaft timing gear assemblies and camshaft timing exhaust gear assemblies are aligned with the timing marks of the bearing cap as shown in the illustration.
HINT:
If the timing marks are not as shown, turn the crankshaft one revolution clockwise.
OK:
Timing marks on camshaft timing gear assemblies and camshaft timing exhaust gear assemblies are aligned as shown in the illustration.
HINT:
If the result is not as specified, check for mechanical malfunctions that may have affected the valve timing, such as a jumped tooth or stretching of the timing chain.
NG | GO TO STEP 8 |
|

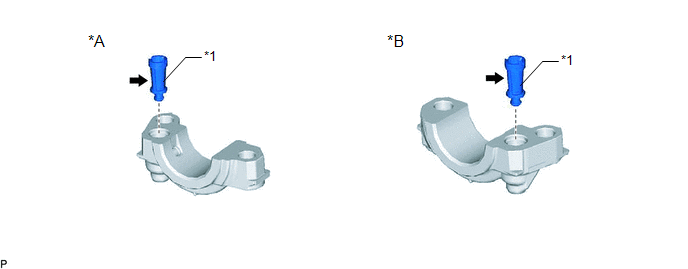

7. | INSPECT OIL CONTROL VALVE FILTER (FOR EXHAUST CAMSHAFT) |
*A | for Exhaust Camshaft of Bank 1 | *B | for Exhaust Camshaft of Bank 2 |
*1 | Oil Control Valve Filter | - | - |
(a) Remove the oil control valve filter (for exhaust camshaft of bank 1) or oil control valve filter (for exhaust camshaft of bank 2).
(b) Check that the filter is not clogged.
OK:
Filter is not clogged.
OK | GO TO STEP 14 |
NG | REPLACE OIL CONTROL VALVE FILTER (FOR EXHAUST CAMSHAFT) |
8. | CHECK ENGINE MECHANICAL SYSTEM |
(a) Check for mechanical malfunctions that affect the valve timing, such as a jumped tooth or stretching of the timing chain.
HINT:
Perform "Inspection After Repair" after repairing or replacing the engine mechanical system.
Click here
NG | REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA |
|
9. | CHECK WHETHER DTC OUTPUT RECURS (DTC P001400, P001500, P002400 OR P002500) |
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream on.
(d) Clear the DTCs.
Powertrain > Engine > Clear DTCs(e) Turn the engine switch off and wait for at least 30 seconds.
(f) Turn the engine switch on (IG).
(g) Turn the Techstream on.
(h) Start the engine and warm it up.
(i) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
(j) Enter the following menus: Powertrain / Engine / Trouble Codes.
(k) Read the DTCs.
Powertrain > Engine > Trouble Codes Result | Proceed to |
---|---|
DTCs are not output | A |
DTC P001400, P001500, P002400 or P002500 is output | B |
A | CHECK FOR INTERMITTENT PROBLEMS |
B | REPLACE ECM |
10. | REPLACE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (FOR EXHAUST CAMSHAFT) |
(a) Replace the cam timing oil control solenoid assembly (for exhaust camshaft).
Click here
|
11. | INSPECT CAMSHAFT TIMING GEAR BOLT (CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY [FOR EXHAUST CAMSHAFT]) |
(a) Inspect the camshaft timing gear bolt (camshaft timing oil control valve assembly [for exhaust camshaft]).
OK | GO TO STEP 13 |
|
12. | REPLACE CAMSHAFT TIMING GEAR BOLT (CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY [FOR EXHAUST CAMSHAFT]) |
(a) Replace the camshaft timing gear bolt (camshaft timing oil control valve assembly [for exhaust camshaft]).
|
13. | PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE EXHAUST VVT OCV DUTY RATIO) |
(a) Connect the Techstream to the DLC3.
(b) Start the engine.
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine / Active Test / Control the Exhaust VVT OCV Duty Ratio Bank 1 or Control the Exhaust VVT OCV Duty Ratio Bank 2.
Powertrain > Engine > Active Test Tester Display |
---|
Control the Exhaust VVT OCV Duty Ratio Bank 1 |
Tester Display |
---|
Control the Exhaust VVT OCV Duty Ratio Bank 2 |
(e) Check the engine speed while operating the cam timing oil control solenoid assembly (for exhaust camshaft) using the Techstream.
OK:
Techstream Operation | Engine Condition |
---|---|
0% | Normal engine speed |
100% | Engine idles roughly or stalls |
HINT:
Refer to "Data List / Active Test" [Exhaust VVT OCV Control Duty Ratio Bank 1, Exhaust VVT Change Angle Bank 1, Exhaust VVT OCV Control Duty Ratio Bank 2 and Exhaust VVT Change Angle Bank 2].
Click here
OK | END |
|
14. | REPLACE CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY |
(a) Replace the camshaft timing exhaust gear assembly.
Click here
HINT:
Perform "Inspection After Repair" after replacing the camshaft timing exhaust gear assembly.
Click here
|
15. | CHECK WHETHER DTC OUTPUT RECURS (DTC P001400, P001500, P002400 OR P002500) |
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream on.
(d) Clear the DTCs.
Powertrain > Engine > Clear DTCs(e) Turn the engine switch off and wait for at least 30 seconds.
(f) Turn the engine switch on (IG).
(g) Turn the Techstream on.
(h) Start the engine and warm it up.
(i) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
(j) Enter the following menus: Powertrain / Engine / Trouble Codes.
(k) Read the DTCs.
Powertrain > Engine > Trouble Codes Result | Proceed to |
---|---|
DTCs are not output | A |
DTC P001400, P001500, P002400 or P002500 is output | B |
A | END |
B | REPLACE ECM |
