Lexus ES: Camshaft Position "A" - Timing Over-Advanced or System Performance Bank 1 (P001100,P001200,P002100,P002200)

DESCRIPTION

Refer to DTC P001013.

Click here

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	MIL	Memory	Note
P001100	Camshaft Position "A" - Timing Over-Advanced or System Performance Bank 1	Intake valve timing is stuck at a certain value when in the advance range (1 trip detection logic).	Valve timing Cam timing oil control solenoid assembly (for intake camshaft of bank 1) Camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft of bank 1]) Camshaft timing gear assembly (bank 1) Oil control valve filter (for intake camshaft of bank 1) ECM	Comes on	DTC stored	SAE Code: P0011
P001200	Camshaft Position "A" - Timing Over-Retarded Bank 1	Intake valve timing is stuck at a certain value when in the retard range (1 trip detection logic).	Valve timing Cam timing oil control solenoid assembly (for intake camshaft of bank 1) Camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft of bank 1]) Camshaft timing gear assembly (bank 1) Oil control valve filter (for intake camshaft of bank 1) ECM	Comes on	DTC stored	SAE Code: P0012
P002100	Camshaft Position "A" - Timing Over-Advanced or System Performance Bank 2	Intake valve timing is stuck at a certain value when in the advance range (1 trip detection logic).	Valve timing Cam timing oil control solenoid assembly (for intake camshaft of bank 2) Camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft of bank 2]) Camshaft timing gear assembly (bank 2) Oil control valve filter (for intake camshaft of bank 2) ECM	Comes on	DTC stored	SAE Code: P0021
P002200	Camshaft Position "A" - Timing Over-Retarded Bank 2	Intake valve timing is stuck at a certain value when in the retard range (1 trip detection logic).	Valve timing Cam timing oil control solenoid assembly (for intake camshaft of bank 2) Camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft of bank 2]) Camshaft timing gear assembly (bank 2) Oil control valve filter (for intake camshaft of bank 2) ECM	Comes on	DTC stored	SAE Code: P0022

MONITOR DESCRIPTION

The ECM optimizes the intake valve timing using the Variable Valve Timing (VVT) system to control the intake camshaft. The VVT system includes the ECM, cam timing oil control solenoid assembly, camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft]) and camshaft timing gear assembly. The ECM sends a target duty-cycle control signal to the cam timing oil control solenoid assembly. The camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft]) is operated to control the oil pressure supplied to the camshaft timing gear assembly based on this signal. The camshaft timing gear assembly can advance or retard the intake camshaft.

If the difference between the target and actual intake valve timing is large, and changes in the actual intake valve timing are small, the ECM interprets this as the camshaft timing gear assembly stuck malfunction and stores a DTC.

These DTCs indicate that the camshaft timing gear assembly cannot operate properly due to a camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft]) malfunction or the presence of foreign matter in the camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft]).

MONITOR STRATEGY

Related DTCs	P0011: Advanced camshaft timing (for intake camshaft of bank 1) P0012: Retarded camshaft timing (for intake camshaft of bank 1) P0021: Advanced camshaft timing (for intake camshaft of bank 2) P0022: Retarded camshaft timing (for intake camshaft of bank 2)
Required Sensors/Components (Main)	Cam timing oil control solenoid assembly Camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft]) Camshaft timing gear assembly
Required Sensors/Components (Related)	Crankshaft position sensor VVT sensor Engine coolant temperature sensor
Frequency of Operation	Continuous
Duration	Within 10 seconds
MIL Operation	Immediate
Sequence of Operation	None

TYPICAL ENABLING CONDITIONS

Monitor runs whenever the following DTCs are not stored	P0010, P0020 (VVT oil control solenoid bank1, 2) P0016, P0018 (VVT system bank1, 2 - misalignment) P0101, P0102, P0103 (Mass air flow meter) P0117, P0118 (Engine coolant temperature sensor) P0125 (Insufficient coolant temperature for closed loop fuel control) P0335, P0337, P0338 (Crankshaft position sensor) P0340, P0342, P0343, P0345, P0347, P0348 (Camshaft position sensor) P0365, P0367, P0368, P0390, P0392, P0393 (Exhaust camshaft position sensor)
Battery voltage	11 V or higher
Engine speed	400 to 4000 rpm
Engine coolant temperature	75 to 100°C (167 to 212°F)

TYPICAL MALFUNCTION THRESHOLDS

P0011 and P0021: Advanced Camshaft Timing

Both of the following conditions are met	-
Deviation of actual valve timing and target valve timing	More than 5°CA (Crankshaft Angle) for 5 seconds or more after the VVT hold duty ratio learned value reaches the upper or lower limit.
Valve timing	No change at advanced valve timing

P0012 and P0022: Retarded Camshaft Timing

Both of the following conditions are met	-
Deviation of actual valve timing and target valve timing	More than 5°CA (Crankshaft Angle) for 5 seconds or more after the VVT hold duty ratio learned value reaches the upper or lower limit.
Valve timing	No change at retarded valve timing

If the difference between the target and actual camshaft timing is greater than the specified value, the ECM operates the VVT actuator for 10 seconds by applying and releasing oil pressure. Then, the ECM monitors the camshaft timing change for 10 seconds.

MONITOR RESULT

Refer to detailed information in Checking Monitor Status.

Click here

P0011, P0012: Exhaust Gas Recirculation/VVT / IN VVT STUCK B1

Monitor ID	Test ID	Scaling	Unit	Description
$35	$81	Multiply by 0.01	Second	Forced movement of cam timing control actuator time

P0021, P0022: Exhaust Gas Recirculation/VVT / IN VVT STUCK B2

Monitor ID	Test ID	Scaling	Unit	Description
$36	$81	Multiply by 0.01	Second	Forced movement of cam timing control actuator time

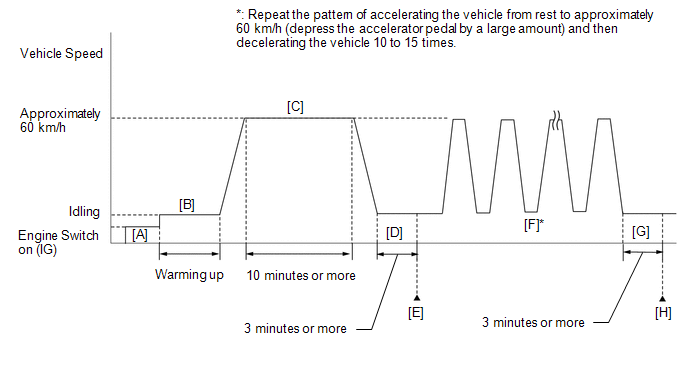

CONFIRMATION DRIVING PATTERN

WIRING DIAGRAM

Refer to DTC P001013.

Click here

CAUTION / NOTICE / HINT

Abnormal Bank	Timing Over Advanced (Valve timing is out of specified range)	Timing Over Retarded (Valve timing is out of specified range)
Bank 1	P001100	P001200
Bank 2	P002100	P002200

PROCEDURE

1.	CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P001100, P001200, P002100 OR P002200)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result	Proceed to
DTC P001100, P001200, P002100 or P002200 is output	A
DTC P001100, P001200, P002100 or P002200 and other DTCs are output	B

HINT:

If any DTCs other than P001100, P001200, P002100 or P002200 are output, troubleshoot those DTCs first.

B

GO TO DTC CHART

A

2.	PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE INTAKE VVT OCV DUTY RATIO)

(a) Connect the Techstream to the DLC3.

(b) Start the engine.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Active Test / Control the Intake VVT OCV Duty Ratio Bank 1 or Control the Intake VVT OCV Duty Ratio Bank 2 / Data List / Intake VVT Change Angle Bank 1 or Intake VVT Change Angle Bank 2.

Powertrain > Engine > Active Test

Active Test Display
Control the Intake VVT OCV Duty Ratio Bank 1

Data List Display
Intake VVT Change Angle Bank 1

Powertrain > Engine > Active Test

Active Test Display
Control the Intake VVT OCV Duty Ratio Bank 2

Data List Display
Intake VVT Change Angle Bank 2

(e) Read the Data List while performing the Active Test with the engine idling.

OK:

Techstream Operation	Data List (Intake VVT Change Angle Bank 1 or Bank 2)
-100% to 100%	Varies by 70 DegFR or more

NG

GO TO STEP 4

OK

3.	CHECK WHETHER DTC OUTPUT RECURS (DTC P001100, P001200, P002100 OR P002200)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(e) Turn the engine switch off and wait for at least 30 seconds.

(f) Turn the engine switch on (IG).

(g) Turn the Techstream on.

(h) Start the engine and warm it up.

(i) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(j) Enter the following menus: Powertrain / Engine / Trouble Codes.

(k) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result	Proceed to
DTCs are not output	A
DTC P001100, P001200, P002100 or P002200 is output	B

HINT:

DTC P001100, P001200, P002100 or P002200 may be stored when foreign matter in the engine oil is caught in some parts of the system. The DTC will remain stored even if the system returns to normal after a short time. That foreign matter may then be captured by the oil filter.

A

CHECK FOR INTERMITTENT PROBLEMS

B

4.	INSPECT CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (FOR INTAKE CAMSHAFT)

(a) Inspect the cam timing oil control solenoid assembly (for intake camshaft).

Click here

NG

GO TO STEP 10

OK

5.	INSPECT CAMSHAFT TIMING GEAR BOLT (CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY [FOR INTAKE CAMSHAFT])

(a) Inspect the camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft]).

NG

GO TO STEP 12

OK

6.	CHECK VALVE TIMING (CHECK FOR LOOSE TIMING CHAIN AND JUMPED TEETH)

(a) Remove the cylinder head cover sub-assembly and cylinder head cover sub-assembly LH.

*a	Timing Mark	*b	TDC Timing Mark
*c	Groove	-	-

(b) Turn the crankshaft pulley and align its groove with the TDC timing mark of the timing chain cover.

(c) Check that the timing marks of the camshaft timing gear assemblies and camshaft timing exhaust gear assemblies are aligned with the timing marks of the bearing cap as shown in the illustration.

HINT:

If the timing marks are not as shown, turn the crankshaft one revolution clockwise.

OK:

Timing marks on camshaft timing gear assemblies and camshaft timing exhaust gear assemblies are aligned as shown in the illustration.

HINT:

If the result is not as specified, check for mechanical malfunctions that may have affected the valve timing, such as a jumped tooth or stretching of the timing chain.

NG

GO TO STEP 8

OK

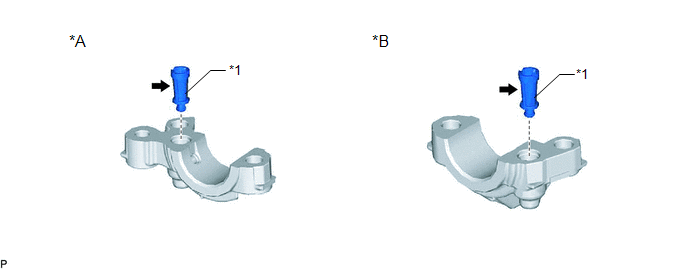

7.	INSPECT OIL CONTROL VALVE FILTER (FOR INTAKE CAMSHAFT)

*A	for Intake Camshaft of Bank 1	*B	for Intake Camshaft of Bank 2
*1	Oil Control Valve Filter	-	-

(a) Remove the oil control valve filter (for intake camshaft of bank 1) or oil control valve filter (for intake camshaft of bank 2).

(b) Check that the filter is not clogged.

OK:

Filter is not clogged.

OK

GO TO STEP 14

NG

REPLACE OIL CONTROL VALVE FILTER (FOR INTAKE CAMSHAFT)

8.	CHECK ENGINE MECHANICAL SYSTEM

(a) Check for mechanical malfunctions that affect the valve timing, such as a jumped tooth or stretching of the timing chain.

HINT:

Perform "Inspection After Repair" after repairing or replacing the engine mechanical system.

Click here

NG

REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

OK

9.	CHECK WHETHER DTC OUTPUT RECURS (DTC P001100, P001200, P002100 OR P002200)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(e) Turn the engine switch off and wait for at least 30 seconds.

(f) Turn the engine switch on (IG).

(g) Turn the Techstream on.

(h) Start the engine and warm it up.

(i) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(j) Enter the following menus: Powertrain / Engine / Trouble Codes.

(k) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result	Proceed to
DTCs are not output	A
DTC P001100, P001200, P002100 or P002200 is output	B

A

CHECK FOR INTERMITTENT PROBLEMS

B

REPLACE ECM

10.	REPLACE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (FOR INTAKE CAMSHAFT)

(a) Replace the cam timing oil control solenoid assembly (for intake camshaft).

Click here

NEXT

11.	INSPECT CAMSHAFT TIMING GEAR BOLT (CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY [FOR INTAKE CAMSHAFT])

(a) Inspect the camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft]).

OK

GO TO STEP 13

NG

12.	REPLACE CAMSHAFT TIMING GEAR BOLT (CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY [FOR INTAKE CAMSHAFT])

(a) Replace the camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft]).

NEXT

13.	PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE INTAKE VVT OCV DUTY RATIO)

(a) Connect the Techstream to the DLC3.

(b) Start the engine.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Active Test / Control the Intake VVT OCV Duty Ratio Bank 1 or Control the Intake VVT OCV Duty Ratio Bank 2 / Data List / Intake VVT Change Angle Bank 1 or Intake VVT Change Angle Bank 2.

Powertrain > Engine > Active Test

Active Test Display
Control the Intake VVT OCV Duty Ratio Bank 1

Data List Display
Intake VVT Change Angle Bank 1

Powertrain > Engine > Active Test

Active Test Display
Control the Intake VVT OCV Duty Ratio Bank 2

Data List Display
Intake VVT Change Angle Bank 2

(e) Read the Data List while performing the Active Test with the engine idling.

OK:

Techstream Operation	Data List (Intake VVT Change Angle Bank 1 or Bank 2)
-100% to 100%	Varies by 70 DegFR or more

OK

END

NG

14.	REPLACE CAMSHAFT TIMING GEAR ASSEMBLY

(a) Replace the camshaft timing gear assembly.

Click here

HINT:

Perform "Inspection After Repair" after replacing the camshaft timing gear assembly.

Click here

NEXT

15.	CHECK WHETHER DTC OUTPUT RECURS (DTC P001100, P001200, P002100 OR P002200)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(e) Turn the engine switch off and wait for at least 30 seconds.

(f) Turn the engine switch on (IG).

(g) Turn the Techstream on.

(h) Start the engine and warm it up.

(i) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(j) Enter the following menus: Powertrain / Engine / Trouble Codes.

(k) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result	Proceed to
DTCs are not output	A
DTC P001100, P001200, P002100 or P002200 is output	B

A

END

B

REPLACE ECM
